191-5603 Engine 9T8647 Pump Group Piston Cylinder Liner 1915603 Piston Ring 9T-8647

Product Categories
Guangzhou Tianhe District Zhuji Fengtu Mechanical Equipment Sales Department
Contact Now

191-5603 Engine 9T8647 Pump Group Piston Cylinder Liner 1915603 Piston Ring 9T-8647

Brand Name : Caterpillar

Model Number : 324D, 325C, 325D L, 328D LCR, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 340D L, 345C, 345C L, 345D L, 349D, 349D L, 385C

Certification : 68555435543

Place of Origin : China

MOQ : 1

Price : Price negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10

Delivery Time : 3-5

Packaging Details : box

model OEM : 416B, 416C, 416D, 420D, 420E, 424D, 426C, 428B, 428C, 428D, 430D, 430E, 432D, 436C, 438B, 438C, 438D, 442D, 446B, 446D

product name : 1915603 PISTON Caterpillar parts

cross code : CA1915603 191-5603 1915603

other name : Piston Kit

sort : Cylinder Liner

application : Engine Parts

applicable : Excavator Parts

Weight : XX kg.

Contact Now

1915603 PISTON Caterpillar parts 324D, 325C, 325D L, 328D LCR, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN, 336D, 336D L, 336D LN, 340D L, 345C, 345C L, 345D L, 349D, 349D L, 385C

Product Description

CA1915603
191-5603
1915603

EXCAVATOR 324D 325C 325D L 328D LCR 330C 330C FM 330C L 330D 330D FM 330D L 330D LN 336D 336D L 336D LN 340D L 345C 345C L 345D L 349D 349D L 385C L
MOBILE HYD POWER UNIT 330C 330D 330D L 336D L Caterpillar

336D2 L Excavator MBP00001-UP (MACHINE) POWERED BY C9 Engine

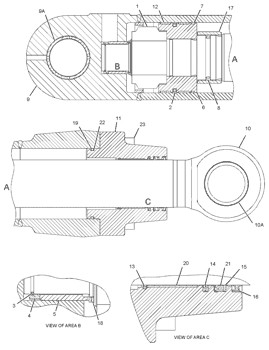

  • 289-8031: CYLINDER GP-STICK » M00766580303

CYLINDER GP-STICK

289-8031 CYLINDER GP-STICK
S/N MBP1-UP
170-MM (6.7-IN) BORE X 1738-MM (68.4-IN) STROKE
PART OF 289-8030 CYLINDER & SEAL GP-STICK

Information

Pos. Part No Qty Parts name Comments
1. 7Y-4956 M [1] LOCKNUT (M90X2-THD)
2. 9X-3607 J [1] SEAL AS
3. 103-8345 [1] RING-RETAINING
4. 107-6579 [1] RING
5. 107-6933 [1] STOP
6. 191-5603 [1] PISTON
7. 191-5605 J [1] RING
8. 231-6843 J [1] RING-SEAL
9. 289-8032 [1] CYLINDER AS-HYDRAULIC
9A. 241-7342 [1] BUSHING
10. 289-8037 [1] ROD AS
10A. 241-7342 [1] BUSHING
11. 191-5602 [1] HEAD
12. 191-5604 J [2] RING
13. 191-5643 [1] RING-RETAINING
14. 191-5645 J [1] SEAL-BUFFER
15. 191-5647 J [1] RING-BACKUP
16. 191-5648 J [1] SEAL-LIP TYPE
17. 191-5705 [1] STOP
18. 095-0930 [2] RING-RETAINING (EXTERNAL)
19. 095-1726 J [1] SEAL-O-RING
20. 191-5644 [1] BUSHING
21. 191-5646 J [1] SEAL-U-CUP
22. 7Y-4945 J [1] RING-BACKUP
23. 7Y-5239 M [8] BOLT-SOCKET HEAD (M24X3X100-MM)
AVAILABLE REPAIR KIT(S):
231-6844 J [1] KIT-SEAL (STICK CYLINDER)


OEM

1232111 Piston Engine 123-2111 Ring 6E5650 Pump Group Piston 1J8569 Cylinder Liner 6E-5650
1233135 Seal A Engine 123-3135 Ring 6E6012 Pump Group Piston Cylinder Liner 6E-6012
1243528 Piston Engine 124-3528 Ring 6N7334 Ring Group Piston Cylinder Liner 6N-7334
1243529 Piston Engine 124-3529 Ring 6N7344 Ring Group Piston Cylinder Liner 6N-7344
1282952 Piston Engine 128-2952 Ring 7E2899 Ring Group Piston Cylinder Liner 7E-2899
1305867 Piston Engine 130-5867 Ring 7E5213 Ring Group Piston Cylinder Liner 7E-5213

191-5603 Engine 9T8647 Pump Group Piston Cylinder Liner 1915603 Piston Ring 9T-8647
